State-of-the-art tooling

With our extensive and modern machinery, we produce all imaginable cylindrical toothing (up to a diameter of Ø 2,000 mm). We produce both internal and external toothing in our climatized production hall. Toothing that is larger than Ø 2,000 mm is produced elsewhere in the PWT Group. The possibilities are endless!

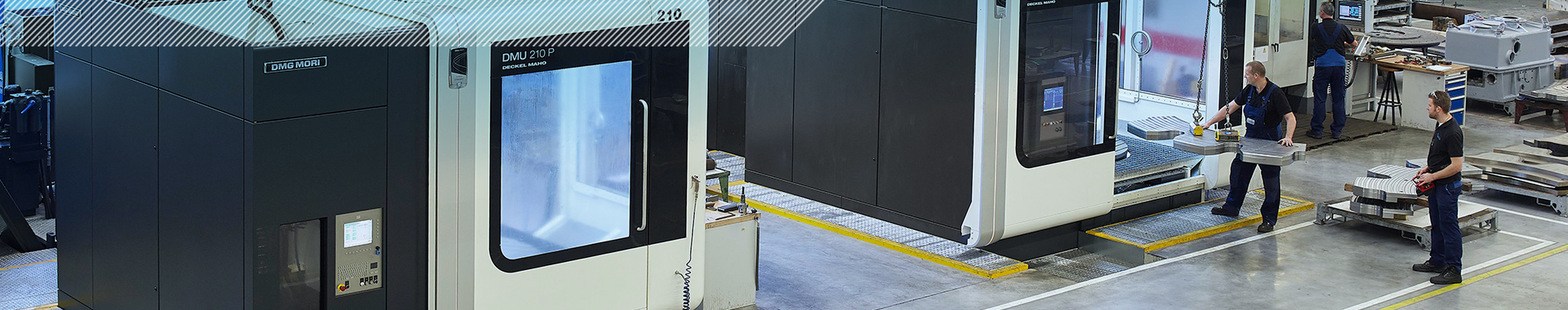

Our machinery

We use the most modern CNC controlled machined and state-of-the-art tooling. It goes without saying that this has positive consequences for the quality, cycle times, speed and production costs.

The characteristics of our

CNC hobbing machines

Full hard-metal hobs or hobs with hard-metal inserts
Extremely short cycle times
Stable tailstock for tensioning shafts
Both helical and straight internal toothing
Maximum workpiece diameter: Ø 2,000 mm*
Maximum workpiece length: 4,000 mm*
Maximum modulus: 36*
Maximum toothwidth: 1,000 mm*
Toothing quality (hobbed): class 8 according to DIN 3962

(*) Larger dimensions can be produced by other companies in the PWT Group.

The characteristics of our

CNC gearshaping machines

Hydrostatically-guided main spindle
Extremely productive and always accurate
Adjustable height (so that the toothing can be brought within the machine’s range)
Maximum workpiece diameter: Ø 1,700 mm
Maximum modulus: 20
Maximum toothwidth: 530 mm
Toothing quality: class 5-8 according to DIN 3962

The characteristics of our

CNC profile-grinding machines

Full profile grinding machines from Gleason-Pfauter and Klingelnberg-Höfler
Stable tailstock for tensioning shafts
On-board measurement equipment for optimal final quality
Also suitable for grinding and measuring (helical and straight) internal toothing
Possibility to enter toothing corrections, angles, etc. directly in the modern Siemens 840 Dsl control
Maximum workpiece diameter: Ø 2,000 mm*
Maximum workpiece length: 4,000 mm*
Maximum modulus: 36*
Maximum tooth thickness: 1,000 mm*
Toothing quality: class 1-5 according to DIN 3962

(*) Larger dimensions can be produced by other companies in the PWT Group.

The properties of our

5-axis milling machines

Suited for internal and external toothing
Direct data input from our selfdeveloped software (extremely accurate)
Shorter machining time, less chance of errors and better flow
Unprecedented toothing quality
Extreme precision when hard milling after hardening
Turning, drilling, milling and grinding are combined in one single machine
Maximum workpiece diameter: Ø 3,400 mm*
Maximum workpiece length: 4,000 mm*
Maximum modulus: unlimited
Maximum toothwidth: 2,000 mm
Toothing quality: class 1-6 according to DIN 3962

Worm sets in every size

Besides gears and gearboxes, PWT Bierens also produces worm wheels and worm shafts. We do this observing all common standards, also for worm wheels sets with a CAVEX profile. Multistart worm shafts are no problem for us. For the finishing, you can choose between hard milling or grinding. Regardless of what you choose, you can always count on a high-quality finished product.

The properties of our

wormsets:

Wormwheels made of (highquality) bronze
Choose between tangential hobs or 5-axle milling cutter (in particular favourable fordeviating shapes or multi-start wormsets)
Production takes place using our own software.
Maximum centre-to-centre distance: 1,800 mm*
Maximum modulus: 55*
Number of starts: 1-15

All supporting machining under one roof

We have a very wide range of the most modern machines, allowing us to provide optimal service. We do not only perform the toothing itself in our group, but can also perform all supporting machining.

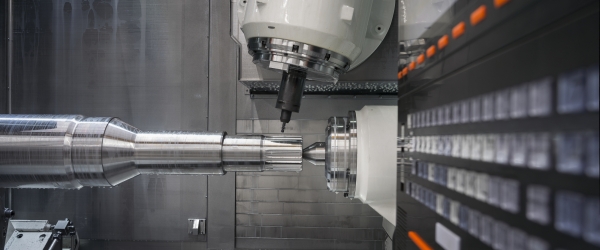

Our CNC horizontal turning department:

We have a very wide range of the most modern machines, allowing us to provide optimal service. We do not only perform the toothing itself in our group, but can also perform all supporting machining.

Three modern teach-in lathes
Five CNC-controlled horizontal turning- and millingstations (with live tools and c- and y-axes)
Possibility to perform complex machining in one setup
Short lead time and high-quality finished product
Maximum workpiece diameter: Ø 1,070 mm*
Maximum workpiece length: 4,000 mm*

(*) Larger dimensions can be produced by other companies in the PWT Group.

Our CNC vertical turning department:

Three CNC-controlled vertical lathes (the largest machine has hydrostatic guides, allowing extreme precision)
Turning, milling, drilling, threading and grinding possibilities
Accurate c-axis
Maximum workpiece diameter: Ø 2,800 mm*
Maximum workpiece height: 2,200 mm*

Our CNC grinding possibilities:

We have a very wide range of the most modern machines, allowing us to provide optimal service. We do not only perform the toothing itself in our group, but can also perform all supporting machining.

For internal and external cylindrical grinding, as well as surface grinding.
For both straight and conical surfaces.
Extremely accurate.
Maximum workpiece diameter (wheels): Ø 2,800 mm*
Maximum workpiece height (wheels): 2,200 mm*
Maximum workpiece diameter (shafts): Ø 750 mm*
Maximum workpiece length (shafts): 4,000 mm*

(*) Larger dimensions can be produced by other companies in the PWT Group.

Other machining possibilities

We also perform other machining operations, such as slotting, soldering and sparking of keyways and internal splines. Our machinery includes a modern Wire EDM.

Quality and reliability are paramount to us!

We place a great deal of importance on perfecting our processes. Training and education play an important role in this. As a result, our skilled employees are up to date with the latest trends and developments in the sector and they are very skilled in the use of our ultramodern machines. PWT Bierens Quality is our aim!
